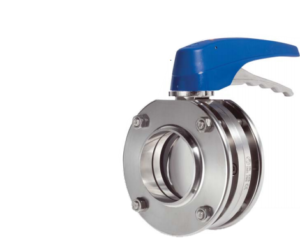

INOXPA Butterfly Valve Sandwich 4900
Sandwich butterfly valves, whether manually or automatically operated, can be used in most liquid product applications in the food-processing, pharmaceutical and chemical industries. The design allows to easily instal or remove the valve without separating the pipes.

Size: Array

Product Description

Application

Operating principle

The butterfly valve can be operated automatically through an actuator or manually with a handle. The handle blocks the valve in the “open” or “closed” position, although there are also other models with intermediate positions.The actuator transforms the axial movement of the piston into a 90º rotary movement which it transmits to the disc.

Design and features

  • Design: “between flanges”.
  • Compact and robust design.
  • Multi-position handle as standard feature for valves up to DN-100/4″.
  • Two-position handle as standard feature for valves starting from DN-100/4″.
  • Low pressure losses.
  • Bodyhalves interchangeable with any connection type.
  • Connections: DIN 11850.
  • Traceability of components.

Materials

Disc and body halves AISI 316L (forged)
Handle AISI 304 / PP
Other St.St. parts AISI 304
Gasket EPDM according to FDA 177.2600
Internal surface finish Ra ≤ 0,8 μm
External surface finish Machined, Ra ≤ 1,2 μm

Options

AISI 304L valve.
Gaskets: NBR, VMQ or FPM.
Two sizes for two-position handle.
Handles: two-position, lever, micrometric, with safety lock, etc.
Electric actuator or single- or double-acting actuator, the size is determined by the operating torque of the valve.
Electro-pneumatic positioner.
Inductive position sensors.
C-TOP control unit (inductive position sensors or microswitches).

Technical specifications



General dimensions
