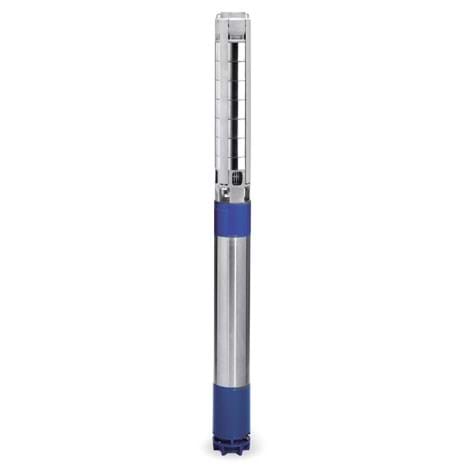

Lowara Submersible Borehole Pumps for 6” Wells Z6, ZN6

The Z6-ZN6 Series is designed for use in 6” wells. The head and motor support of this lightweight and sturdy pump is cast in stainless steel as are the shaft sleeves ensuring long lasting reliability and efficiency.

The pump has a high sand handling capability which make the Z6-ZN6 series suitable for use in aggressive environments such as water supply from deep wells or irrigation over large areas such as golf courses.

Product Description


  • Sturdy design with casted discharge head and motor support
  • Avialable in AISI 304 or AISI 316
  • Delivery up to: 78 m3/h
  • Head up to: 700 m
  • Max immersion depth: 350 m

Z6: AISI 304
ZN6: AISI 316

All Z6-ZN6 pumps can be coupled to NEMA standard motors.

General Specification Z6, ZN6 Submersible Pumps for 6″ Wells
Delivery up to 78 m³/h
Head up to 700 m
Power Supply three-phase 50 Hz
Power from 0.55 kW up to 55 kW
Maximum Operating Pressure 70 bar
Temperature of Pumped Liquid to 60 °C
Maximum Immersion Depth 350 m
